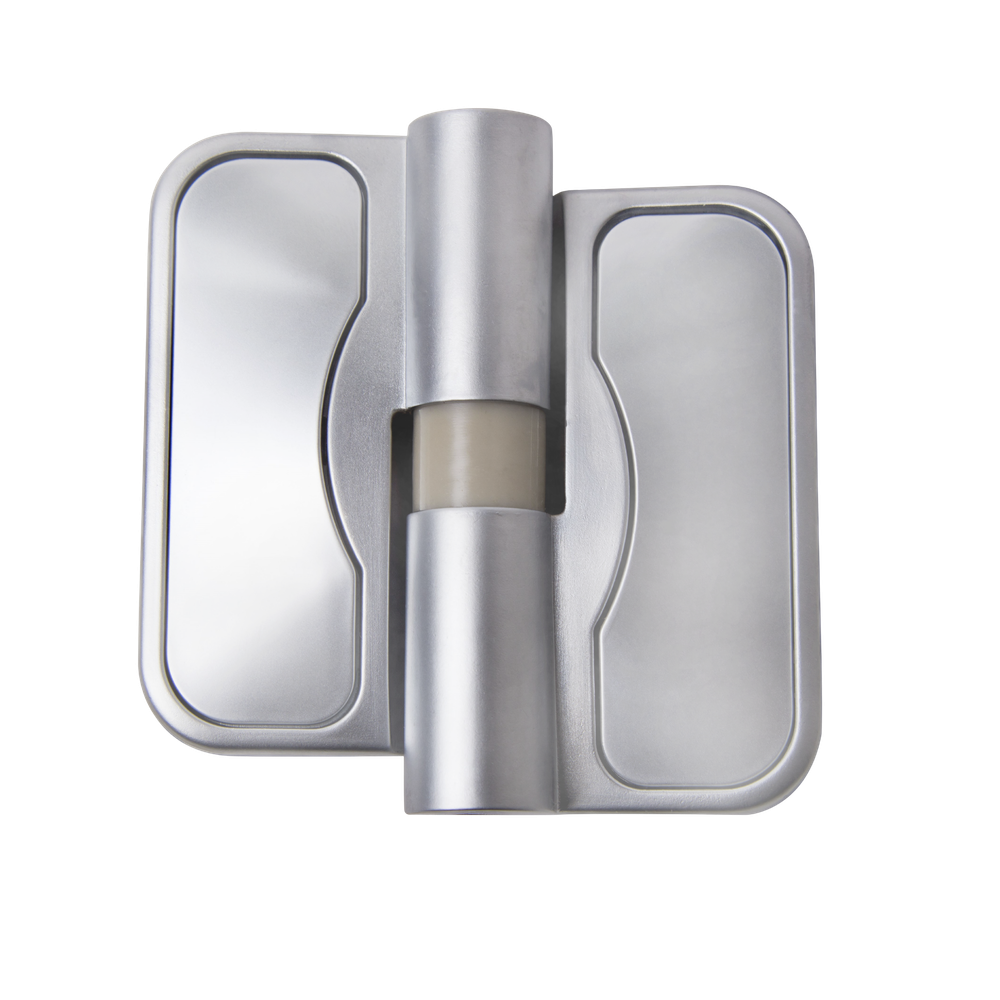

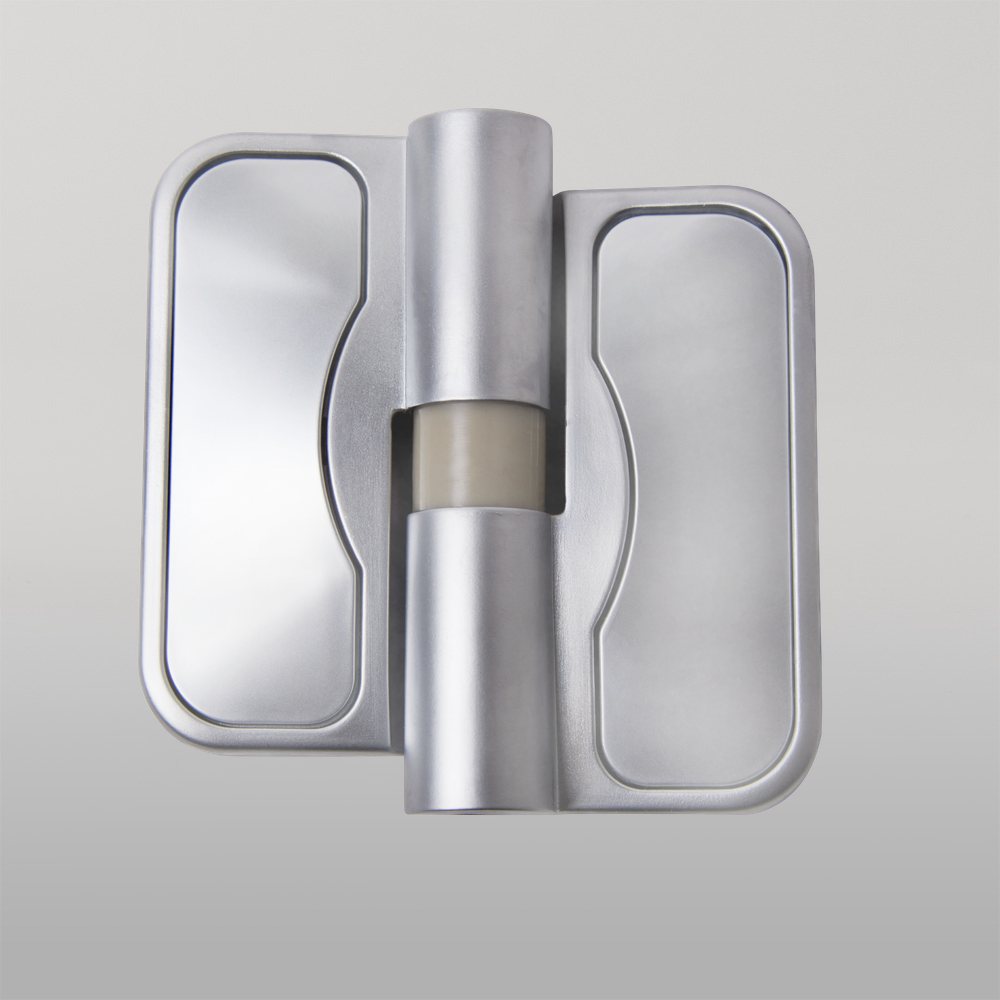

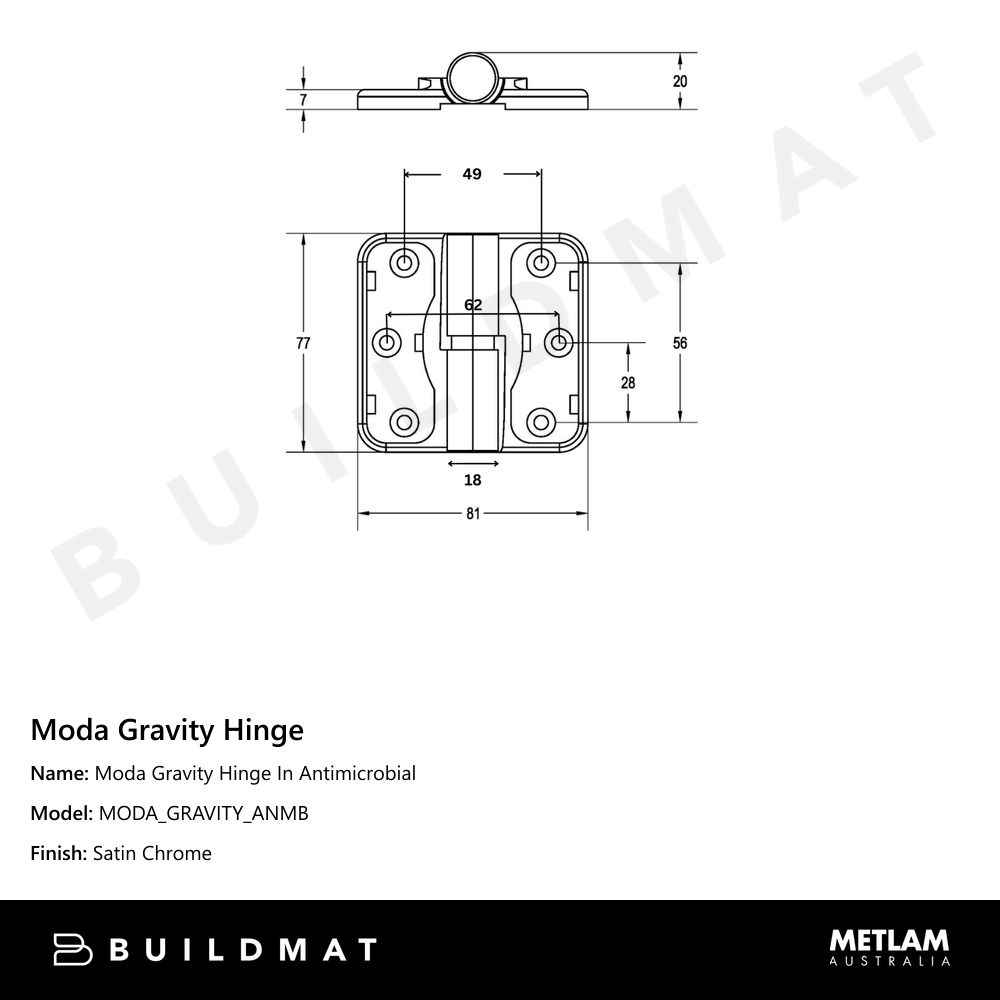

Moda Gravity Hinge In Antimicrobial

MODA_GRAVITY_ANMB

Specification

Material:

• Diecast Zinc, Alloy ZP3
• Brass Shaft
• Nylon Inserts
• ABS Snap-On Covers

Finish: Antimicrobial Coating

Mounting: Concealed Screw Fix or Bolt Through

Features:

• The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function.
• The nylons are set so the door can move past 90° whilst still functioning correctly.
• The nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing.
• Interchangeable hinge covers including Moda Spring Hinge.
• The fixing holes correlate with the bolt-through faceplates making installation a breeze.
• Reversible Hold Open / Hold Closed
• Lift off capability

Load Rating:

• 15Kg per hinge
• For optimum performance -
• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge
• Note: 3 Hinges per door is recommended to prevent door bowing
